Profiles (Settings)

🚧 This article is incomplete

This article is incomplete & needs to be reviewed. You can help by creating a pull request.

Overview​

The following profiles are available by default: Browse map, Driving, Cycling, Walking, Truck, Motorcycle, Moped, Train, Public transport, Boat, Aircraft,Skiing, Horseback riding. Each profile is available for full configuration. OsmAnd also provides the possibility to create your own profile with full customization.

There are profiles such as Skiing and Boat, the additional features of which are available only after enabling the corresponding plugins, Menu → Plugins → Ski map view and Nautical map view.

note

Truck, Motorcycle, Moped, Train, Aircraft, Boat and Horseback riding profiles are switched off by default. In order to use these profiles, you need to activate them in Menu → Settings → App profiles.

  • Menu → Configure profile (Browse map or any other profile)
  • Menu → Settings → App profiles

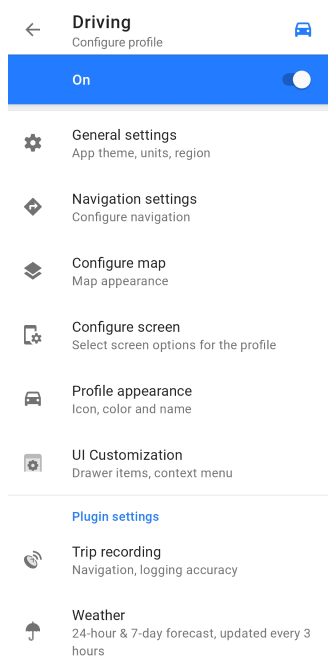

Profiles Settings Android

Profile configuration​

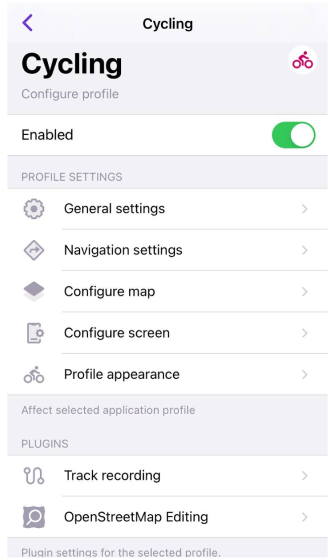

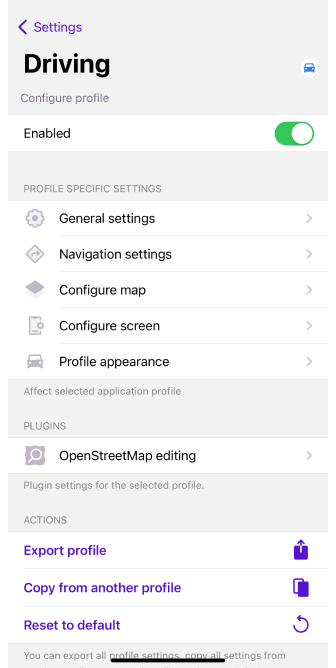

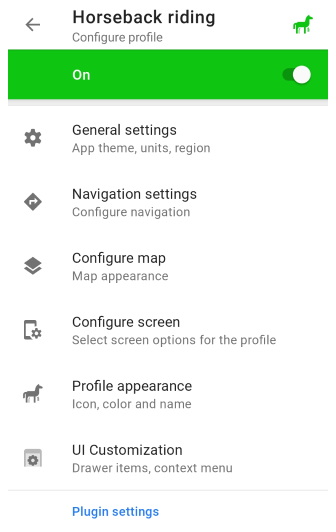

Profiles Settings Android Profiles Settings Android

This section contains all settings related to appearance, navigation options, map display, settings menu and profile screen.

note

All settings affect only the selected application profile.

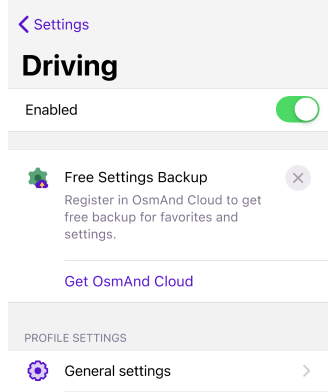

Free Cloud backup​

Menu → Configure profile

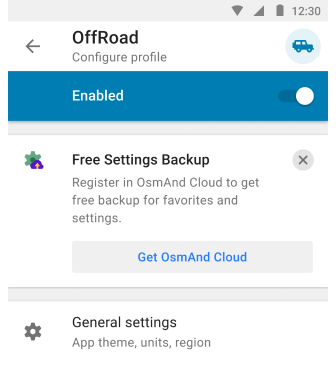

Favorites folder functions android

OsmAnd provides the ability to backup your application profile settings and save them in OsmAnd Cloud. Thus, your settings will be safely and conveniently saved for Android, iOS, or Web versions and restored in case of device failure or reinstallation of OsmAnd app. You can take advantage of this special plan by using OsmAnd Start.

You must have an OsmAnd Cloud account to use the Free Settings Backup. If you have an account in OsmAnd Pro or an active account in OsmAnd Cloud, you will not see the promotion banner.

General settings​

This section contains settings for the application theme and compass button, map and profile data units and formats, external input devices, and many other settings to create the optimal configuration for your chosen profile.

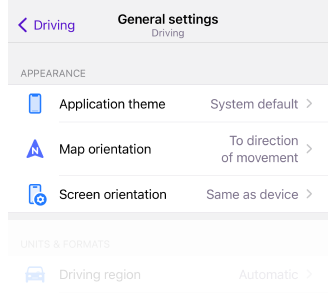

Appearance​

Menu → Configure profile → General settings → Appearance

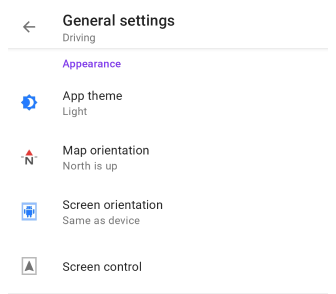

Profiles General Settings Appearance Android

  • App theme. Allows you to set a day and night theme for the app, which can be applied to one profile or to all at once. This option does not change the map mode settings.

    • Dark theme
    • Light theme
    • System default
      Applies the system theme. By default and for all new users, the map style corresponds to the light or dark theme selected in your device's system settings.

  • Map orientation. Allows you to choose the map orientation mode for the selected profile.

    • North is up
    • Movement direction
    • Compass direction
    • Manually rotated

  • Screen orientation. Sets and locks the screen position in the OsmAnd application. Not supported on iPad.

    • Portrait
    • Landscape
    • Same as device

  • Screen control (Android). Opens the screen control menu, where you can select options for the device screen while navigating to save device battery consumption.

  • Location position on screen (iOS). Allows you to choose where to display your location on the screen.

    • Automatic
    • Center
    • Bottom

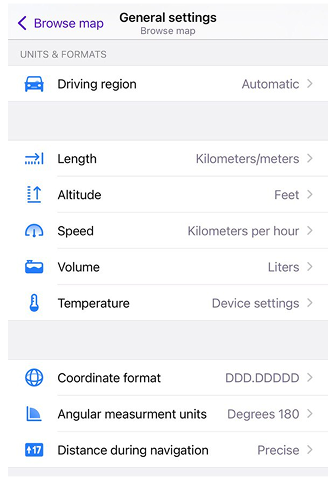

Units & formats​

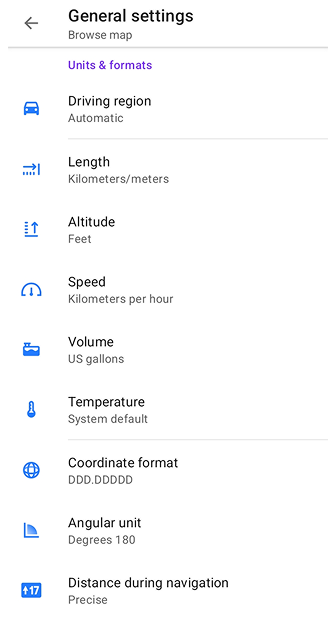

Profiles General Settings Units & formats Android

In this section you can set parameters of units and formats for chosen application profile.

ParameterFormatNote
Driving regionAutomaticAccording to the device location
Europe, Asia, Latin America, and similarRight-hand traffic, Kilometers/meters
United StatesRight-hand traffic, Miles/feet
CanadaRight-hand traffic, Kilometers/meters
UK, India, and similarLeft-hand traffic, Miles/feet
JapanLeft-hand traffic, Kilometers/meters
AustraliaLeft-hand traffic, Kilometers/meters
Units of lengthKilometers/meters1 km / 1000 m
Miles/feet0.62 ml / 3281 ft (1000 m)
Miles/meters0.62 ml / 1000 m
Miles/yards1094 ya / 0.62 ml (1000 m)
Nautical miles/feet, Nautical miles/meters0.54 nmi / 3280.84 ft / 1000 m
Coordinate formatDD°MM.MMMM′Example: 50.12333° 19.93233° (Lat Long)
DD°MM.MMM′Example: 50°7.393′ 19°55.941′ (Lat Long)
DD°MM′SS″Example: 50°7′23.6″ 19°55′56.4″ (Lat Long) 23°27′30″
UTM Standard34N 5552876 423678 (Zone Northing Easting) . OsmAnd uses the UTM Standard, which is similar but not identical to the UTM NATO format.
MGRSExample: 34U DA 23678 52873 . OsmAnd uses MGRS, which is similar to the UTM NATO format.
Open Location CodeExample: 9F2X4WFJ+7W (Open Location Code represents area 9m x 14m)
Swiss Grid (CH1903) (Android version only)Example: 2 215 227.87, 830 915.9 (Swiss coordinate system)
Swiss Grid (CH1903+) (Android version only)Example: 4 215 227.87, 1 830 915.9 (Swiss coordinate system)
Angular unit (Android) / Angular measurement units (iOS)Degrees 180°All angular values have readings from 0° to 180° and from 0° to -180°.
Degrees 360°All angular values have readings from 0° to 360°.
MilliradiansAll angular values have milliradian value.
Unit of speed (Android) / Units of speed (iOS)Kilometers per hour90 km/h
Miles per hour55.92 mph
Meters per second30 m/s
Minutes per mile1.073 min/m
Minutes per kilometer0.667 min/km
Nautical miles per hour (knots)48.59 kn
Distance during navigationPreciseFor exact numbers. Select how distance information is displayed in the navigation widgets, such as distance to a point, next turn, or lane.
Round upFor better readability numbers displayed in navigation widgets (distance to a point, next turn, lane) will be rounded down to have fewer digits. Examples: 12.64 km -> 12 km, 3672 m -> 3 km, 462 m -> 400 m, 184 m -> 150 m, 47 m -> 40 m, 18 m -> 10 m

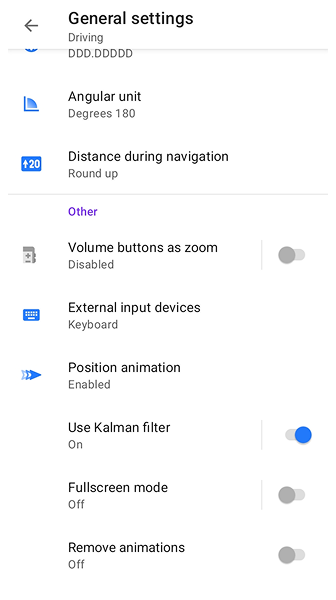

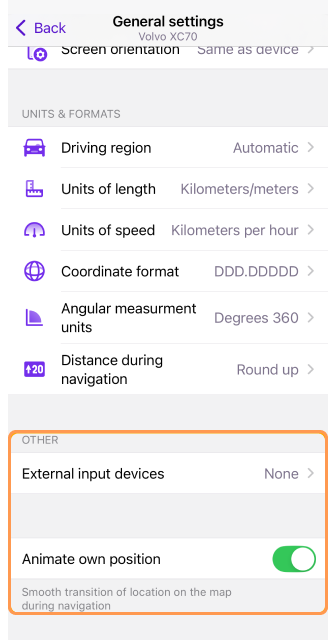

Other​

Menu → Configure profile → General settings → Other

Profiles General Settings Other Android

The Other section provides additional profile settings. You can switch buttons and input devices for OsmAnd, enable or disable animation in navigation mode, use or not use the full-screen mode, magnetic sensor, and Kalman filter. Not everything is available for iOS.

  • Volume buttons as zoom (Android) - allows to use or not volume buttons of a device as zoom.
  • External input devices (Android / iOS) - allow you to add other devices, such as WunderLINQ, Keyboard, or Parrot, to control the OsmAnd program using the existing buttons.
  • Use Kalman filter (Android) - allows to use or not Kalman filter for smoothen rotation of the map with a slower rotation animation though it introduces a small delay (< 1 second) till.
  • Use magnetic sensor (Android) - allows to use or not Magnetic sensor for smoothen rotation of the map with a slower rotation animation though it introduces a small delay (< 1 second) till.
  • Enable Fixed North Up (Android) - allows to lock hard or not the "North is up (fixed)" map position.
  • Fullscreen mode (Android) - tapping an empty space on the map hides control buttons and widgets.
  • No animations (Android) - allows to switch on/off animation for navigation mode.
  • Animate own position (Android) - Smooth map panning when in motion. Introduces slight delay. Note that the animation takes about 1 second, which creates a slight delay for the My location position to display on the map relative to your location.

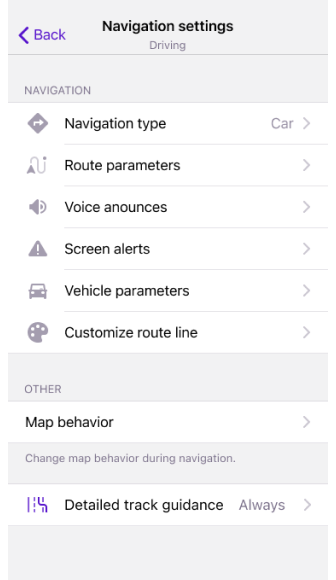

Menu → Configure profile → Navigation settings

Navigation Settings Android

In the article Navigation settings you can find the relevant settings of the OsmAnd app that you can use in your journeys.

  • Navigation Types. Gives you the option to choose the type of navigation depending on how you are travelling and whether you have an internet connection.
  • Route parameters. These are settings that determine how the app will calculate a route to reach your destination.
  • Screen alerts. This navigation setting allows you to enable the Alerts Widget and select which alerts you want to see on the app screen while navigating.
  • Voice prompts. Audio instructions during navigation help you as a driver or pedestrian get to your destination while navigating a selected route.
  • Vehicle parameters. Allows you to select the correct parameter settings to help you avoid problems when navigating a route.
  • Customise route line. With this setting you can choose the appearance of the route line that will be visible on the map during navigation.
  • Map during navigation. The map is used during navigation to determine your location, plan your route, and land orientation.
  • Animate own position (iOS). For Android, this item is located in the Other section of the General Settings menu. This setting provides a smooth animation of the My Position point moving on the map during navigation.
info

There are no navigation settings in Browse map profile.

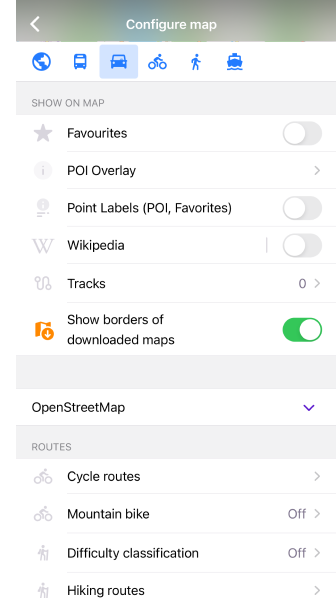

Configure map​

  • Menu → Configure profile → Configure map
  • Menu → Settings → App profiles → Configure map

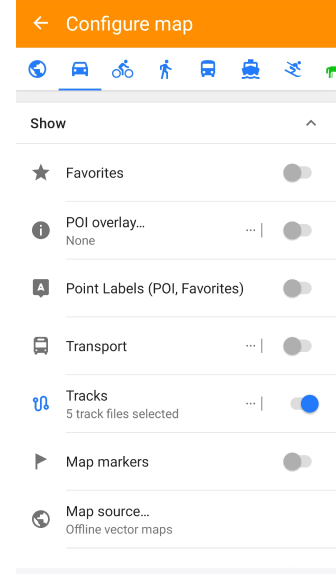

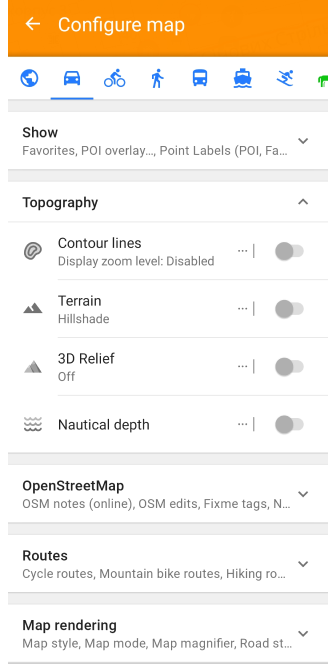

Profiles Configure map Settings Android

The Configure map menu allows you to customize the map display settings for the selected profile, for example:

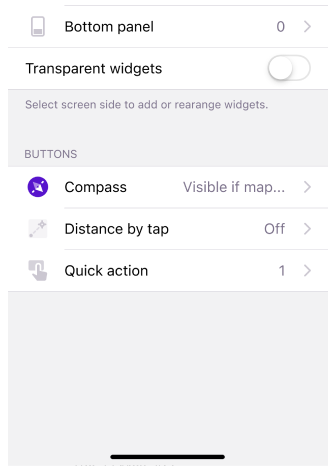

Configure screen​

  • Menu → Configure screen
  • Menu → Settings → App Profile → Configure screen

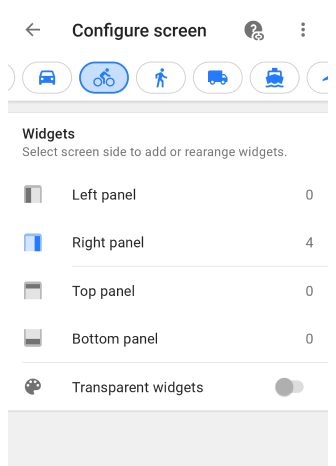

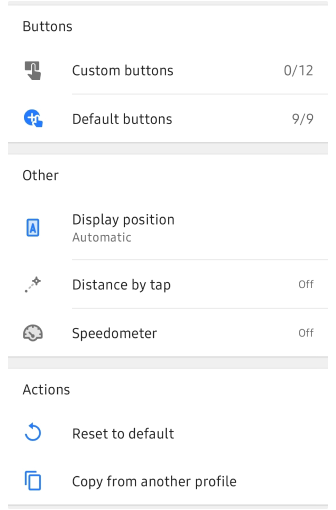

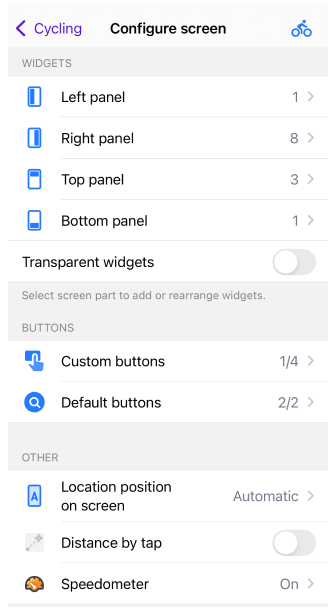

Configure screen menu Configure screen menu

The Configure screen is a menu that allows you to configure the widgets for the selected profile to be displayed on the map. On this screen, you can enable and configure Informational and Navigational widgets, as well as other items.

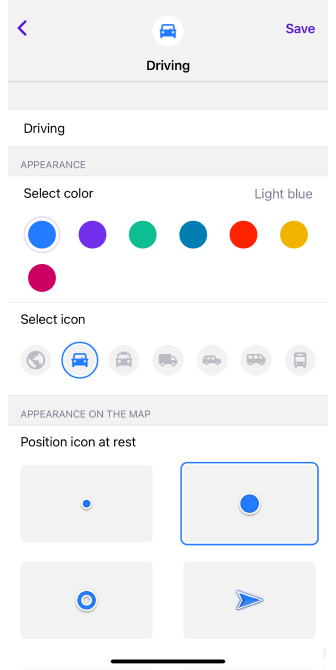

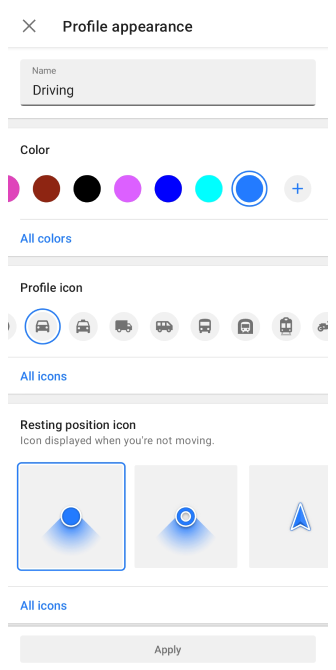

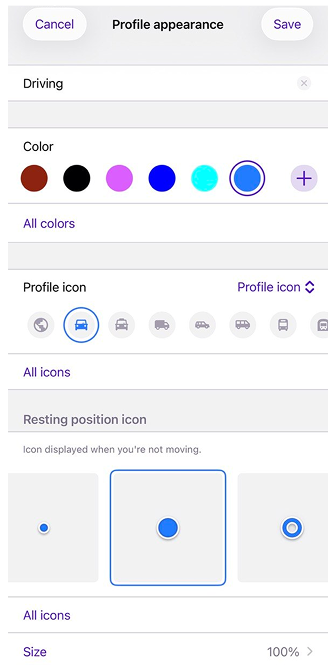

Profile appearance​

You can choose the color of the profile elements, its icon and name, also assign icons on the map for movement and without.

Menu → Configure profile → Profile appearance

DescriptionAndroid screensiOS screens
Profile name.
You can change the name.
Profile appearance.
You can change the color
and label for the selected profile.
Select color.
Allows you to select colors
for the profile icon and menu.		Profile AppearanceProfile Appearance
Select icon.
Allows you to select the icon
that fits the best with the selected profile.		Profile AppearanceProfile Appearance

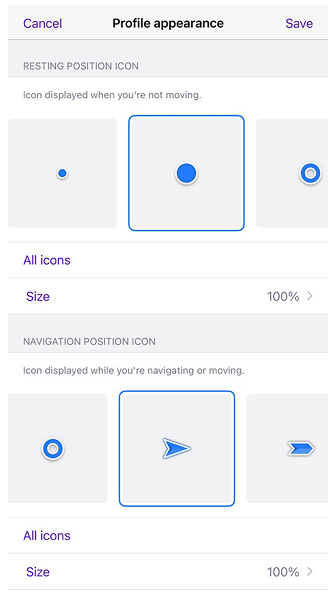

Appearance on the map.
Allows you to select
the appearance of the location icon
according to your preferences.

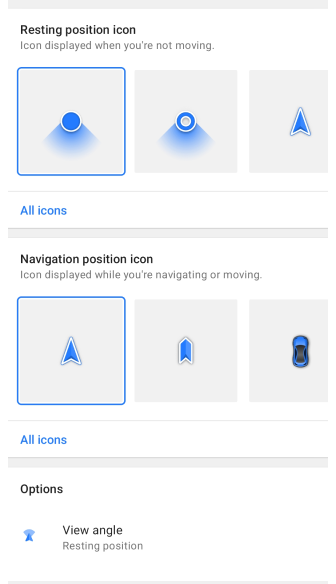

Position icon at rest.
Select a location icon
in a non-moving state.		Profile Appearance at rest AndroidProfile Appearance iOS

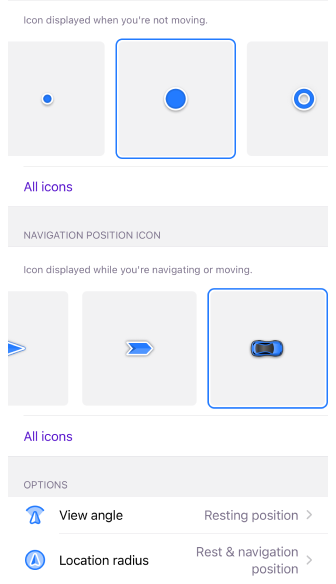

Position icon while moving
Selects the location icon
in the state while moving.		Profile Appearance on the map AndroidProfile Appearance iOS

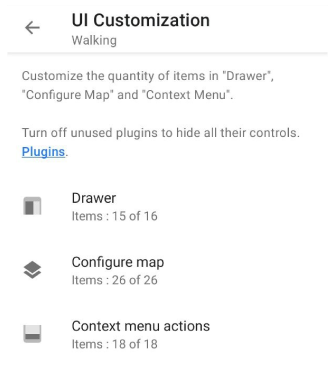

UI Customization​

⚠️ Android only
This feature is currently not available for the iOS version of the OsmAnd app.

Menu → Configure profile → UI Customization

Profile UI Customization Android

NOTE: To hide all controls of unused plugins, disable them.

With the UI customization feature, you can adjust the number of items in actions such as Drawer, Configure map and Context menu actions. Information about the number of added items out of all possible items can be found under the title of each feature.

Drawer​

In this part of the menu you reorder or hide items from the Drawer.

Actions: Note
"Minus": These items are hidden from the menu, but the represented options or plugins will continue to work.
"Moving": These items are moved to other positions in the menu.

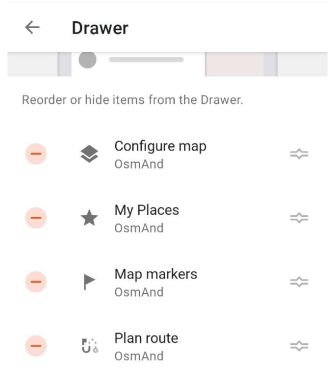

Profile Drawer Android

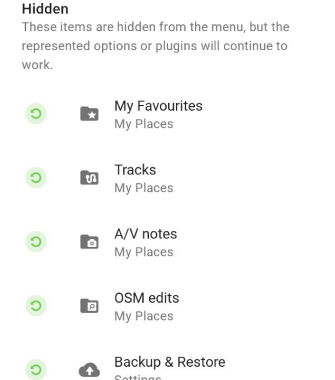

"Reset": These items are reset from the "Hidden" part of the menu to the visible.
Profile Reset Android
"Reset to default": resetting the "Drawer" menu to default.
"Copy from another profile": coping the "Drawer" menu from another profile.
Profile Copy Android

Configure map​

In this part of the menu you reorder or hide items from the Configure map menu.

Actions: Note
"Minus": These items are hidden from the menu, but the represented options or plugins will continue to work.
"Moving": These items are moved to other positions in the menu.

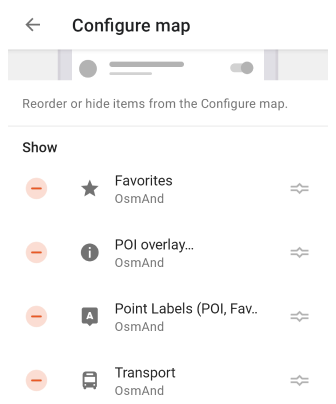

Profile Configure map menu Android
"Reset": These items are reset from the "Hidden" part of the menu to the visible.
Profile Configure map menu Reset Android
"Reset to default": resetting the "Configure map" menu to default.
"Copy from another profile": coping the "Configure map" menu from another profile.
Profile Configure map menu Copy Android

Context menu actions​

In this part of the menu you reorder or hide items from the Context menu actions menu.

Actions: Note
"Minus": These items are hidden from the menu, but the represented options or plugins will continue to work.
"Moving": These items are moved to other positions in the menu.
Profile Configure map menu Android
"Reset": These items are reset from the "Hidden" part of the menu to the visible.
Profile Configure map menu Reset Android
"Reset to default": resetting the "Context menu actions" menu to default.
"Copy from another profile": coping the "Context menu actions" menu from another profile.
Profile Configure map menu Copy Android

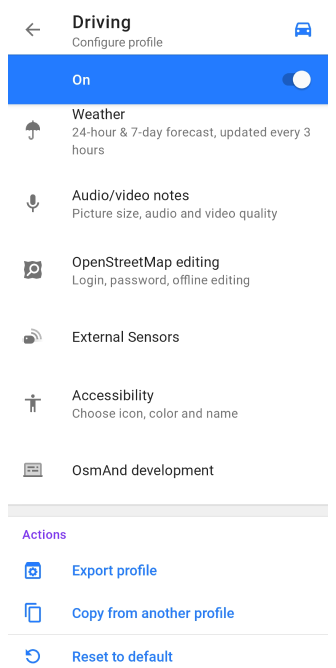

Plugin settings​

caution

To access the plugin's settings, you must first enable the plugin in the Plugin section of the Main menu.

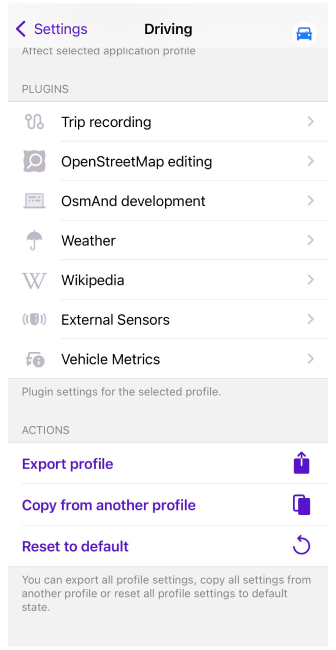

Menu → Settings → App profiles → Plugins

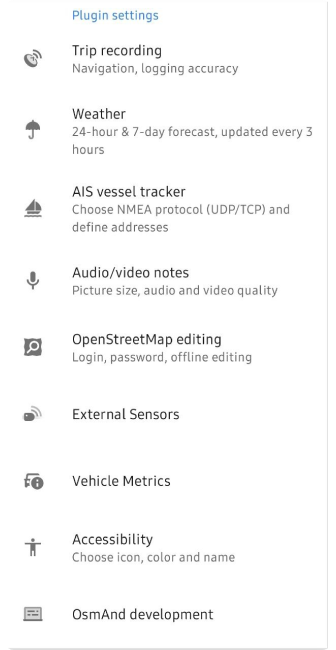

Profile Settings Plugins Android

Plugins unlock additional features of the application and can be either paid or free. Some plugins have their own settings, others do not. OsmAnd gives you the possibility to configure plugins for each profile separately.

Trip recording​

Menu → Settings → Configure profile → Plugin settings → Trip recording

Configuring Trip recording in Android

This item opens the trip recording settings for the selected profile, where you can choose any parameters for recording your journeys.

Weather​

Menu → Settings → Configure profile → Plugin settings → Weather

Configuring Trip recording in Android

Interactive Weather map layers allow you to monitor the temperature, air pressure, cloud coverage, wind speed and precipitation in your city or any other location on a global map.

Audio / Video notes​

⚠️ Android only
This feature is currently not available for the iOS version of the OsmAnd app.

Menu → Plugins → Audio/video notes → Settings

Audio video plugin settings Photo Android

This item opens audio-video plugin settings for the selected profile. The Audio/Video notes plugin extends the functionality of OsmAnd by allowing you to create your own notes in various formats such as photo, video or audio and associate them with geographical location or current location.

OpenStreetMap editing​

Menu → Settings → Configure profile → Plugin settings → OpenStreetMap editing

OpenStretMap editing plugin Settings Android

This item opens the OpenStreetMap editing plugin settings for the selected profile. With OsmAnd and the OSM editing plugin, you can easily contribute your own information to OpenStreetMap.org, such as to create or modify POIs, add or comment notes, and upload recorded GPX tracks.

External Sensors​

Menu → Settings → App profiles → Plugins → External Sensors

External sensors plugin

When you tap an item in the Plugin Settings section, the settings of external sensors for the selected profile are opened. The External sensors plugin allows you to read and record data from wireless external sensors and display it using widgets in the OsmAnd application.

Accesibility​

⚠️ Android only
This feature is currently not available for the iOS version of the OsmAnd app.

Menu → Settings → Configure profile → Plugin settings → Accessibility

Accessibility

This item opens Accessibility plugin settings for the selected profile. The Accessibility plugin settings allow you to customize the application according to your needs. All settings relate to the navigation process and are set individually for each profile.

OsmAnd development​

Menu → Settings → Configure profile → Plugin settings → OsmAnd development

Development Settings Android Development Settings 2 Android

This menu opens the Development plugin settings, where you can configure the OsmAnd application for testing or try out new features. These settings are intended for developers and are not required for normal use of the application.

note

Changing the settings of the OsmAnd development plugin affects all profiles.

Wikipedia​

Menu → Settings → App profiles → Plugins → Wikipedia

Setting a preferred language on Android

This menu opens Wikipedia plugin settings. You can choose in which language the articles will be shown to you, and decide whether to download images from Wikipedia or not. Having Wikipedia on your trip helps you learn more about the places you visit. It is available offline and shows Wikipedia articles in relation to the points of interest right on the map.

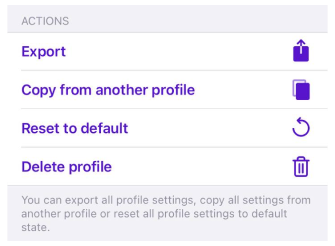

Actions​

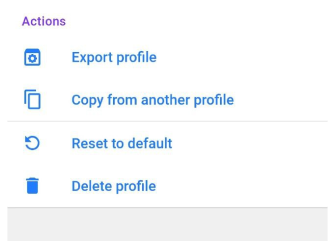

Profiles Actions Settings Android

Actions with selected profile:

  • Export profile. You can export all settings of the selected profile in OSF format.
  • Copy from another profile. Copies all settings from another existing profile in your OsmAnd application.
  • Reset to default. Returns all settings to the initial state.
  • Delete profile.
    • This action is available only for Android and only for a Custom profile.
    • Default profiles cannot be deleted.
    • To add a profile go to Menu → Settings → App profiles → + New profile.
